Mirai laid bare: 16 methods and a one-byte XOR

In Chapter 3 I caught a multi-architecture Mirai and walked off with all twelve binaries. Their strings already showed the C2 in the clear, but the rest of the configuration and every one of its orders were encrypted. Time to crack it open with Ghidra.

We pull out who the bot calls and what it's capable of so we can detect it and block it. The mechanics of the attacks — how each flood is fired — are left out: we catalogue the weapon, we don't hand it over.

01The encryption: a single byte

The XorDDoS from Chapter 2 used a 16-byte XOR key and we had to decompile the routine to find it. This one is in another league — a lower one. Just looking at the encrypted strings gives the trick away: they all end in T (byte 0x54).

# encrypted string exactly as it comes out of the binary:
?5$$50;7=5z:1 T

# XOR each byte with 0x54:
?5$$50;7=5z:1 T  ⊕ 0x54  =  kappadocia.net

The config carries null terminators (\0) at the end of each string, and 0 XOR key = key. That repeated T was the \0 giving the key away: 0x54. A single-byte XOR. I didn't even need to fire up the decompiler — it decrypts straight from strings.

A note, because it may jar: in the previous chapter that same domain was already showing up in plain sight in strings. What we didn't know then is that it also lives in here, inside the encrypted table — and it's this copy, the one the critter actually reads at startup, that we've just cracked open.

02The config laid bare

I apply XOR 0x54 to the whole string table and it comes out clean. And with it, the critter's identity:

# identity
milnetv4            # botnet name/version
.anime             # tell-tale marker of the Mirai lineage

# C2
kappadocia.net · 141.98.10.50

# behavior
/dev/watchdog · /dev/misc/watchdog     # disables the watchdog
/proc/ /exe /maps /proc/net/tcp /proc/net/route
/etc/resolv.conf · nameserver          # resolves the C2
bash

# attack
Source Engine Query    # the template for method 1 (VSE)
assword                # no P: catches "Password:" and "password:" alike

The signature is unmistakably Mirai: the .anime string (marker of a known lineage) and the attack on /dev/watchdog — which disables the device's automatic reboot so it can't clean itself. The sweep of /proc lets it kill rival botnets and work out its own IP. The variant calls itself milnetv4.

A note I didn't make at the time, and that I'm correcting here: the string table has two halves, and not everything the critter carries inside is encrypted. sshd, dropbear and /bin/sh live in the plaintext part; what's above goes through the XOR routine. bash is the only one that shows up in both. It isn't an oversight by the author: they're two different mechanisms — what exec() and the process-killing module consume directly doesn't need decrypting. And it reinforces the note from the previous section, because kappadocia.net is precisely one of the things that sits in both.

03The C2 protocol

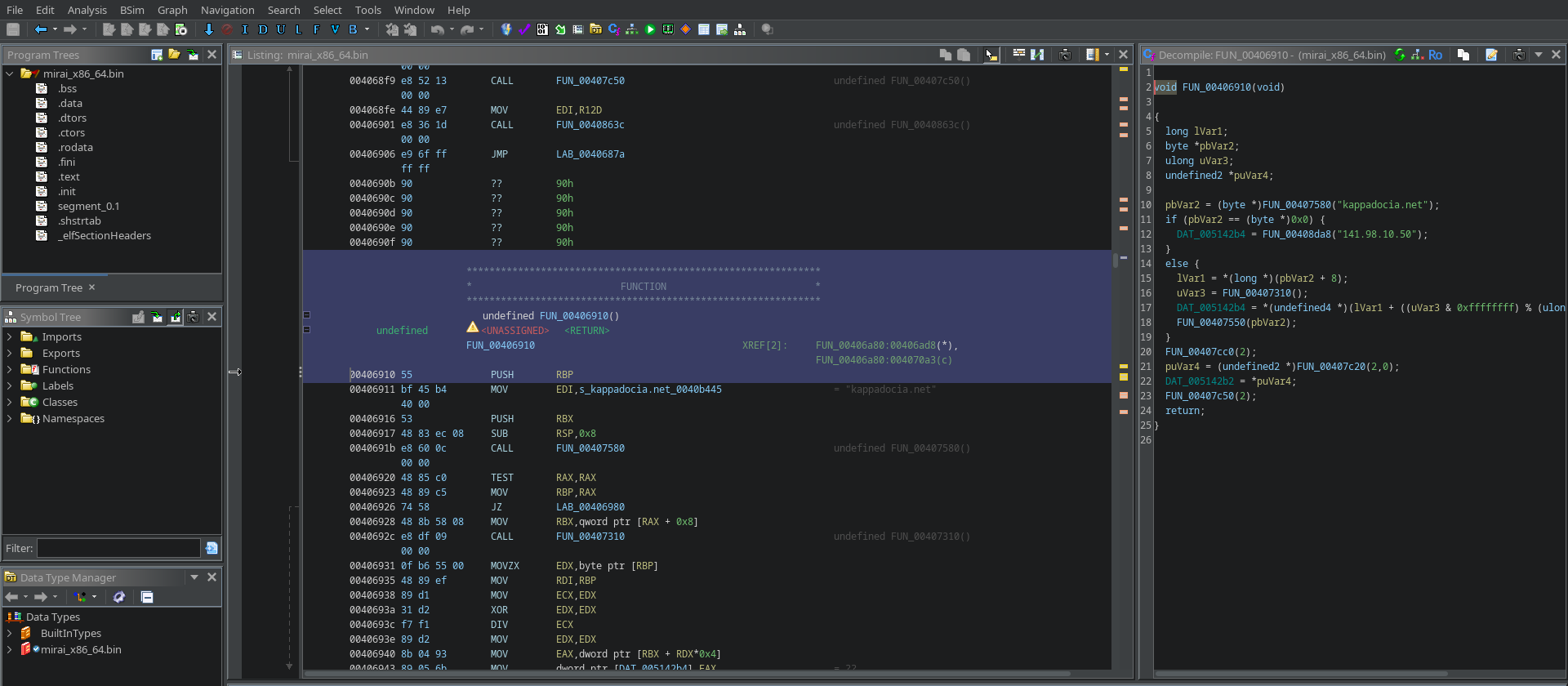

With the config in the clear, I decompiled the main loop in Ghidra. The bot connects to the C2, registers itself (architecture + milnetv4 + .anime) and sends a periodic heartbeat. Orders arrive with a length prefix:

[ 2 bytes big-endian = length ][ payload ]
        └ discarded if the length > 0x400

# the first 4 bytes decide the type:
0xFE  →  kill ALL attacks
0xFD  →  kill ONE attack by its id
other  →  ATTACK order

The attack order carries the duration, the vector id (less than 16), the target list (each one as IP + network prefix) and a list of options (port, size…). For each attack the bot does a fork() and stores the child process in a table — that's how it keeps up to 15 attacks running at once and can kill them individually with the 0xFD order. It's Mirai's architecture, piece by piece.

And there's the reason the two control orders come in different sizes. The order is a four-byte word, so 0xFE — "kill them all" — takes four and needs nothing else. 0xFD takes eight because it carries the identifier of the attack to be stopped stuck on behind it. The asymmetry isn't a quirk of the format: it's that one of the two orders has to say which one.

04The arsenal: 16 methods

The bot registers its attack methods in a {function, id} table. I recovered all 16 entries and classified each by the type of socket it opens and the headers it crafts. I present it as a defensive inventory — what it can do, so it can be recognized — without going into how any of them is executed:

A textbook catalogue: UDP (raw and plain), DNS, GRE, several flavours of TCP and a layer-7 HTTP flood. The hard evidence comes from the code itself — the type of socket and the protocol it asks for leave no room for doubt. Twelve architectures, one and the same arsenal: the table is identical across every binary, proof that they come from a single source. And then there's number 14, which doesn't fit that catalogue at all.

The first fifteen all do the same thing in different wrapping: throw packets at somebody. Number 14 opens a reverse shell: it starts a fresh session, wires standard input, output and errors to a socket, and launches a command interpreter. That floods nobody — that's someone sitting down at the machine.

And the best part is where it calls. Not some mystery address: the same place as always. It dials the very structure the bot fills in at start-up when it resolves its controller — the one that comes out of the XOR 0x54 from the previous section. Same IP, same port, same door. When the operator feels like it, the bot that's been chatting to its C2 all along opens it a /bin/sh down the same channel.

A classic Mirai is a cannon: you tell it who to shoot at, and it shoots. This one also brings a chair.

And if you've been following the numbers, there's something else to look at: the order in which they're registered. It goes: 0, 1, 2, 8, 3, 4, 5, 10, 6, 7, 9, 11, 12, 13, 14, 15.

One of them sits in a place that doesn't match its number: udpplain had its label changed without being moved from its slot in the queue. The tcpxmas in eighth place is something else — not a renumbered veteran, but a newcomer that took a number somebody else left free. That's what's visible, and it's what holds up the conclusion: this isn't a trimmed-down Mirai, it's one with a remapped and stretched attack table. Stretched at the top, too — which is where 11, 12, 13, 14 and 15 live.

The fingerprint, then, isn't in what's missing — nothing is. It's in the order, and in the fact that right at the top, where the original didn't reach, somebody added a chair.

I opened the leaked 2016 code. There the table is filled with ten methods, in this order: 0, 1, 2, 9, 3, 4, 5, 6, 7, 10. Strip the six additions from ours and that exact sequence is what's left. Two labels change: udpplain drops from 9 to 8 — a number nobody used in the original — and HTTP climbs from 10 to 15, though it still goes in last. The two numbers left loose, 9 and 10, go to new methods.

And the signature is a quirk. In the original, udpplain is registered fourth, out of order, on the pure whim of whoever wrote it in 2016. This thing, ten years later, still registers it fourth. That doesn't get reinvented by chance: it comes from there.

And there's one last thing in the inventory that isn't for attacking anyone either. The bot carries a module that, on start-up, closes thirty-two ports on the machine it has just walked into. Telnet, HTTP and FTP among them; a collection of backdoor and IRC ports used by rival botnets; and three very specific ones — 53413 on Netcore boxes, 37215 on Huawei HG532s and 52869 on Realteks. All three are well-known front doors into network gear.

The effect is that the device ends up harder to infect. By anyone else.

And the first on that list is the one that says most: 48101, the port Mirai uses as its single-instance lock — the one a Mirai opens so another copy of itself can't pile in on top. This one kills whatever is listening there. Which is to say: it goes after other Mirai.

05The thread that links back to the past

Passive OSINT on the C2, without touching the machine. kappadocia.net resolves to 141.98.10.50. And that's where the surprise lands:

06Indicators (IOCs)

And that closes out the Mirai family — from the hot chase to the arsenal on the table, all of it to understand it and be able to stop it. With a rhyme I wasn't expecting: back in Chapter 1, the XorDDoS renamed wget and curl so that no other botnet could download anything on that machine. This one closes thirty-two ports, Mirai's own lock included. Two families that look nothing alike doing the same thing: marking territory. And the victim's device left, incidentally, a little safer — for everyone except whoever is already inside.
